This Series has Been Discontinued

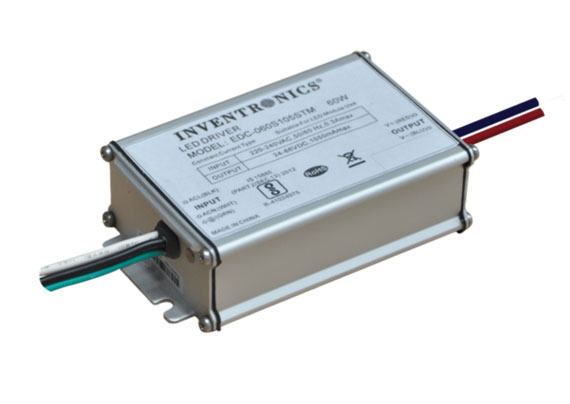

- Compact Metal Housing
- Input Surge Protection:
- 2kV DM, 4kV CM
- Built-in Protection for Unstable Lines:
- Input Over Voltage Protection (OVP)
- Input Under Voltage Protection (UVP)
- Low Total Harmonic Distortion (THD)
- Suitable for Built-in Use and Class I Luminaries
- 5 Year Warranty
Life Time
112,000 hours @ Case Temperature 60°C
Dimensions
Inches (L x W x H)
3.7 x 2.5 x 1.3
Millimeters (L x W x H)
95 x 64 x 32
Certifications
| Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|
| 700 mA | 140 ~ 305 Vac | 48 – 86 Vdc | 60 W | EDC-060S105STM0007 |
| 860 mA | 35 – 70 Vdc | EDC-060S105STM0004 | ||
| 1050 mA | 34 – 57 Vdc | EDC-060S105STM |
