- Low THD, 10% Max up to 240 Vac
- High Efficiency (Up to 91%)
- Input Surge Protection: DM 4kV, CM 6kV
- High Reliability & Long Lifetime: 120,000 Hrs. at 70°C
- Case Temperature
- Adjustable Output Current (AOC) by Potentiometer
- Suitable for Class I Luminaires
- IUVP & IOVP
- IP66/IP67
- 5 Year Warranty
Life Time
120,000 hours @ Case Temperature 60°C
Dimensions
Inches (L x W x H)
6.54 x 2.66 x 1.44
Millimeters (L x W x H)
166 x 67.5 x 36.5
Certifications
| Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|

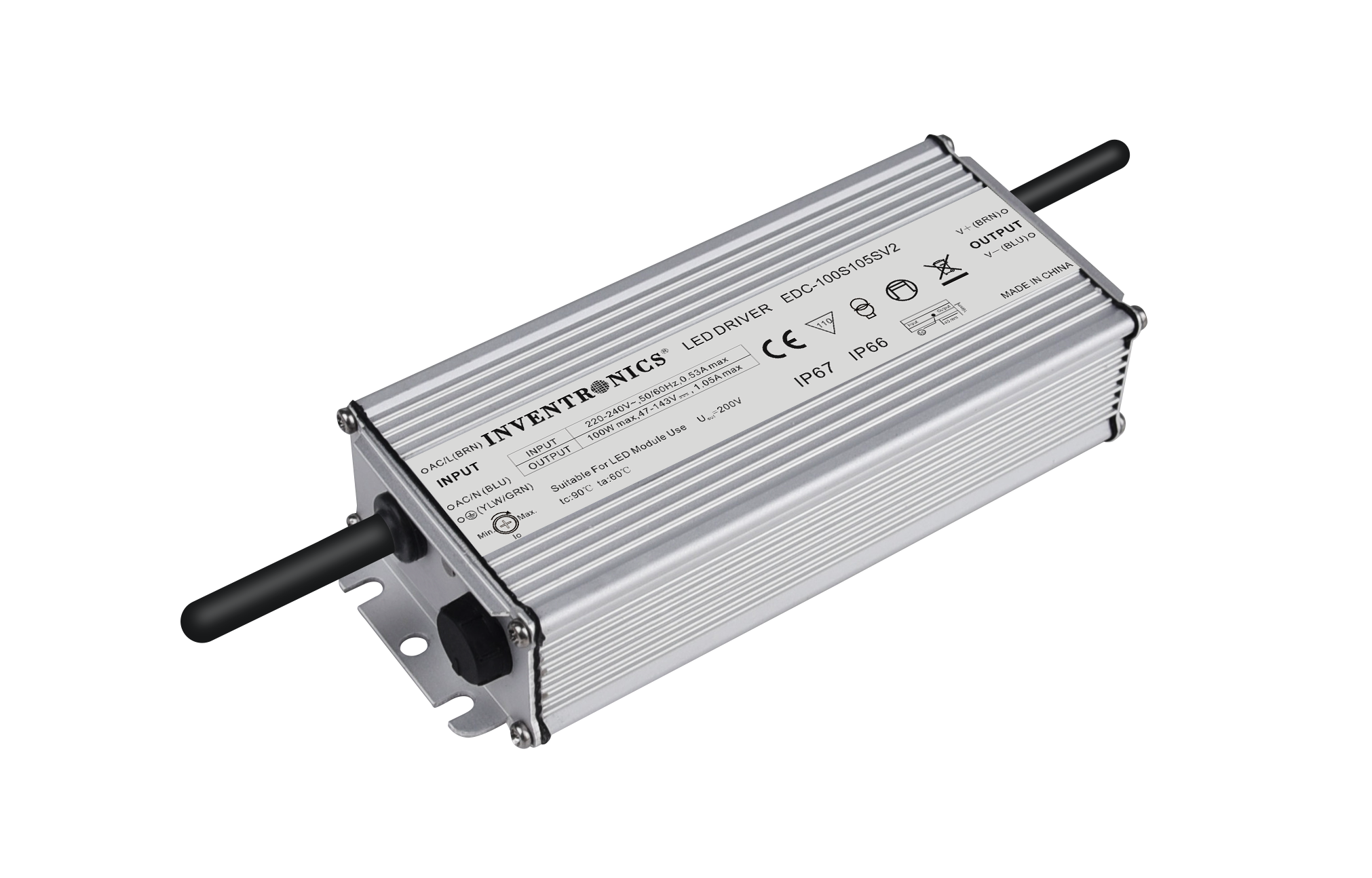

| 700 ~ 1050 mA | 140 ~ 305 Vac | 47 ~ 143 Vdc | 100 W | EDC-100S105SV2 |
File Name |
|---|
LED Driver Installation Instructions (Updated March 2015) |
LED Driver Installation Guidelines (Updated September 2018) |
