• DALI-2 D4i Certified
    • Offers Intra-Luminaire Solutions and Health Monitoring
    • Integrated 16Vdc Bus Power Supply based on DALI-2
  • Integrated AC Power Monitoring with High Accuracy up to ±1%
  • Wireless Programming via Near Field Communication (NFC)
    • Compatible with Zhaga Book 24 Programmers
  • Dimming Controls:
    • Multiple Timers
  • Controls-Ready
    • Always-On Auxiliary Power: 24Vdc, 125mA, 3W (Transient Peak Power up to 10W)
    • Dim-to-Off
  • Optimized, More Compact Form Factor
  • High Level of Built-in Surge Protection:
    • 6kV DM, 10kV CM
  • Input Under Voltage (IUV) and Input Over Voltage (IOV) Protection
  • End-of-Life Indicator
  • Thermal Sensing and Protection for LED Module
  • Simplified Design for Easier Hi-Pot Testing
  • Output Lumen Compensation
  • SELV Output Models Available
  • IP66 and IP67 and UL Dry, Damp, Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous

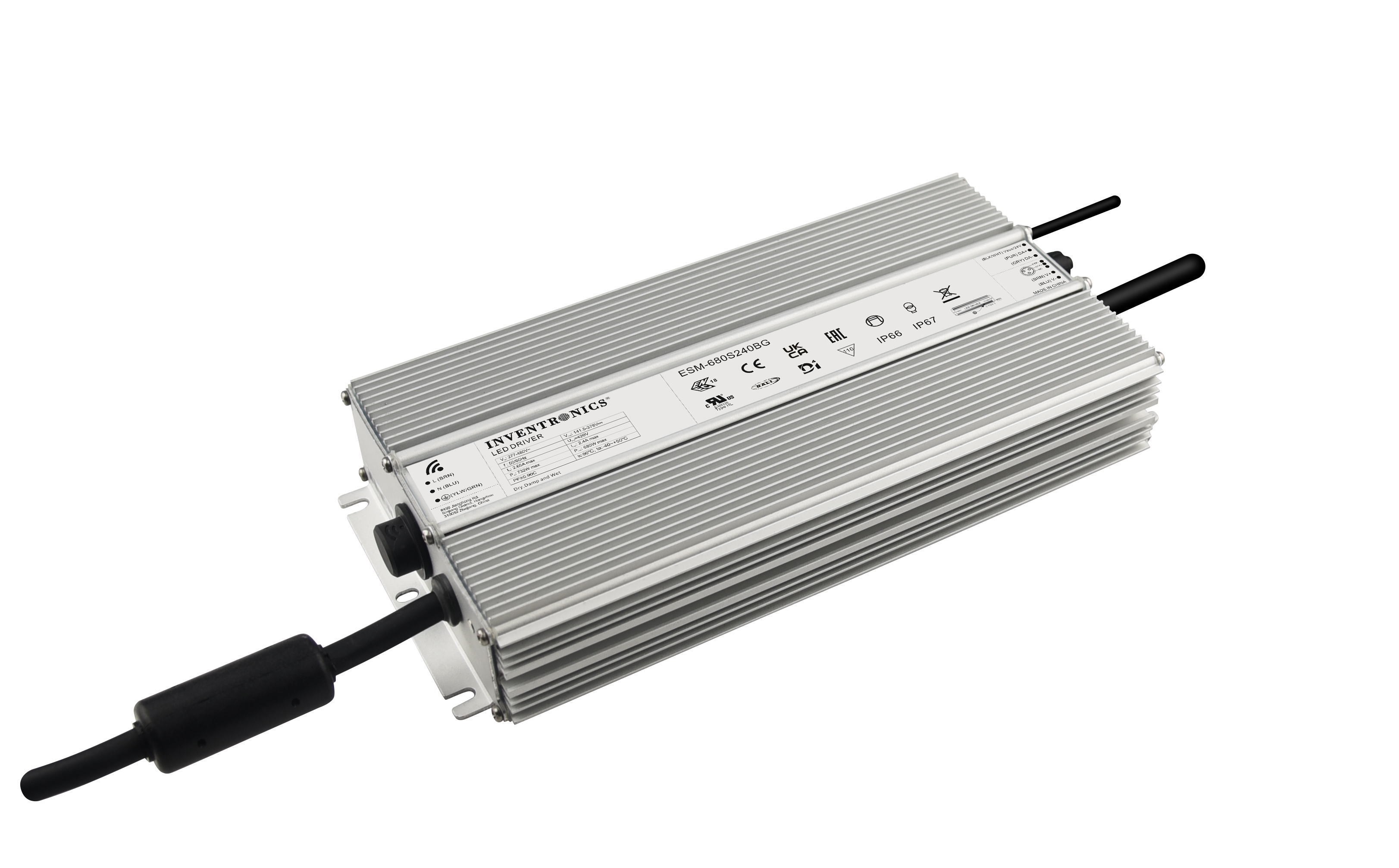

  • ESM-680SxxxBG Models: Global Cable to Reduce Inventory SKUs
  • 5 Year Warranty
Download Data Sheet
Order Here

Life Time

102,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
9.85 × 5.32 × 1.82

Millimeters (L x W x H)
250 × 135 × 46

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
1200 – 1700 mA1700 mA249 – 528 Vac
352 – 500 Vdc		200 – 544 Vdc320 WESM-680S170BG
1800 – 2400 mA2400 mA141.5 –  378 VdcESM-680S240BG
2600 – 3500 mA3500 mA97.1 – 262  VdcESM-680S350BG
4200 – 5600 mA5600 mA60.7 – 163 VdcESM-680S560BG
6300 – 8400 mA8400 mA40.4 – 108 VdcESM-680S840BG
12600 – 15000 mA15000 mA22.6 – 54 VdcESM-680S15ABG
