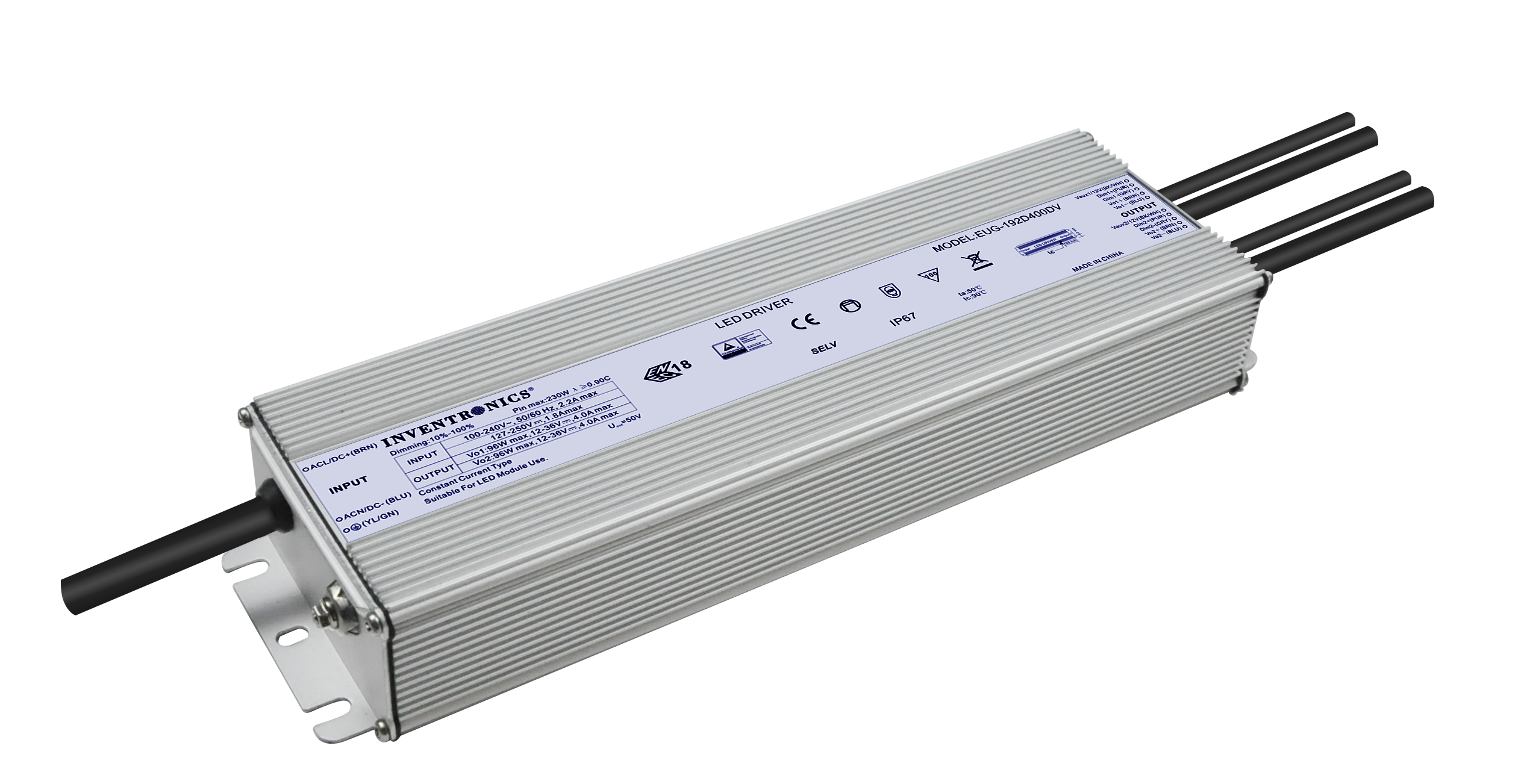

EUG-192D two independent output and dimming channels

This Series is Not Recommended for New Design and has a last buy date of 8/31/2023.

  • Drivers Supplying 192W
    • 96W per Channel
  • Two Independent Dimming Channels (Isolated)
    • 0-5V, 0-10V, PWM, Multiple Timers
  • Input Surge Protection:
    • 6kV DM, 10kV CM
  • SELV Output
  • IP67
  • 7 Year Warranty
Download Data Sheet
Order Here

Life Time

93,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
10.00 x 3.15 x 1.66

Millimeters (L x W x H)
254 x 80 x 42

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
700 – 1050 mA700 mA

90 ~ 305 Vac
127 – 250 Vdc

48 – 137 Vdc

192 W

EUG-192D105DV
1750 – 2650 mA2100 mA18 – 54 VdcEUG-192D265DV
2650 – 4000 mA2800 mA12 – 36 VdcEUG-192D400DV
File Name
LED Driver Installation Instructions (Updated March 2015)
Download
LED Driver Installation Instructions (Updated September 2018)
Download
Programming Interface Device Driver Install First (Updated March 2015)
Download
Design-In Guide for Programmable Drivers (Updated September 2018)
Download
Programming Interface Installation Instructions (Updated April 2015)
Download
Programming Interface Operating Instructions (Updated January 2016)
Download
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
Download
